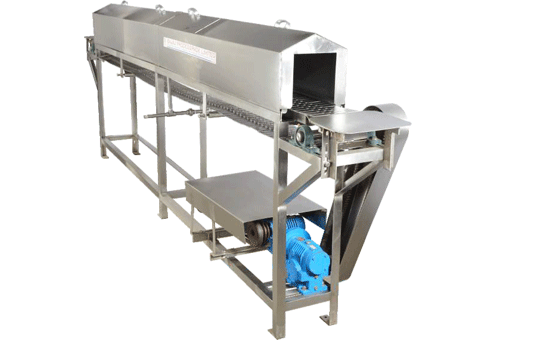

EXHAUST BOX
Suitable to exhaust entrapped air from filled cans/ bottles before seaming. Filled cans are passed through exhaust box and as the temperature increases, the air expands and is exhausted, thus removing any entrapped air pockets. This process increases shelf life. Cans or bottles are then hermetically sealed to ensure long shelf life.
Available in 12 and 18 feet length with MS or SS slat chain/frame option.

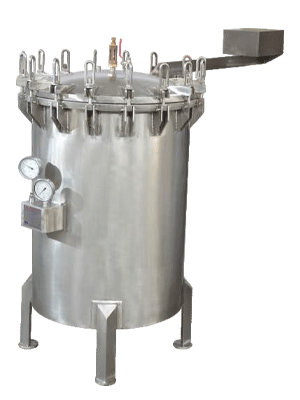

Vertical retort – SS

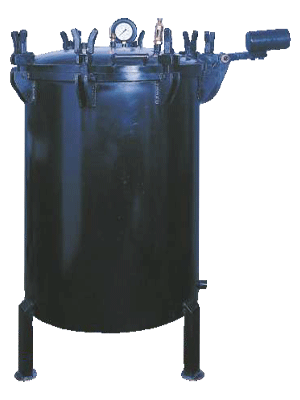

Vertical retort – MS

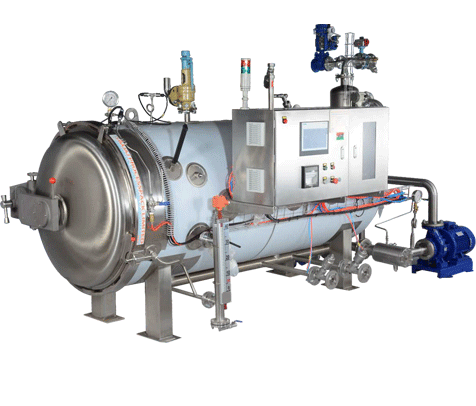

Automatic Counter Pressure Retort
RETORT STERILISER
Suitable for sterilization of cans and glass bottles after exhausting and sealing. Cans or 0 bottles are sterilized up to 110 – 120 C for a period of 15 to 45 minutes as per process requirement.
Available in following models:
Vertical (Water immersion) Retort: Available in 21, 90, 200, 300, 425, 600 cans per batch capacities in MS/SS.
Automatic Horizontal Counter Pressure Retort: Automatic counter pressure retort has inbuilt PLC to control sterilisation temperature, time, pressure and cooling process suitable to sterilise can/PP bottles/glass bottles/retortable pouches. Available in 300, 600, 1000, 1500 and 2000 cans/bottles per batch capacities.

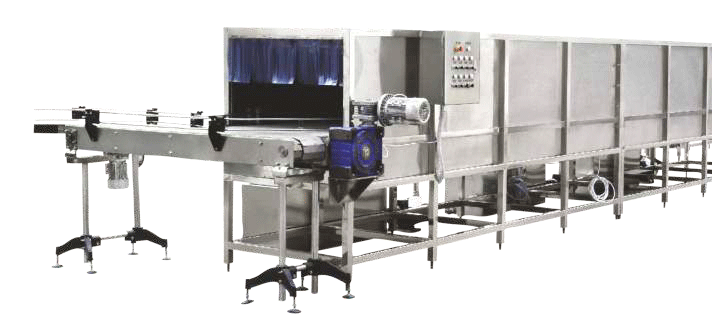

COOLING CONVEYOR
(For cans, bottles and pouches) This Continuous Cooling Conveyor reduces the temperature of hot filled liquids packed in cans, pouches or glass bottles. Its working process is divided into two stages.
First stage uses ambient temperature water and in the second stage it does cold water cooling. This ensures creation of vacuum inside the container after bringing down the temperature to ambient thus ensuring long shelf life. The time in each of the two stages can be regulated as per the requirement. The complete structure is made of SS 304 while the conveying belt is made of high temperature resistant polypropylene (CPP).
Available in 2 to 6 meters length models.
