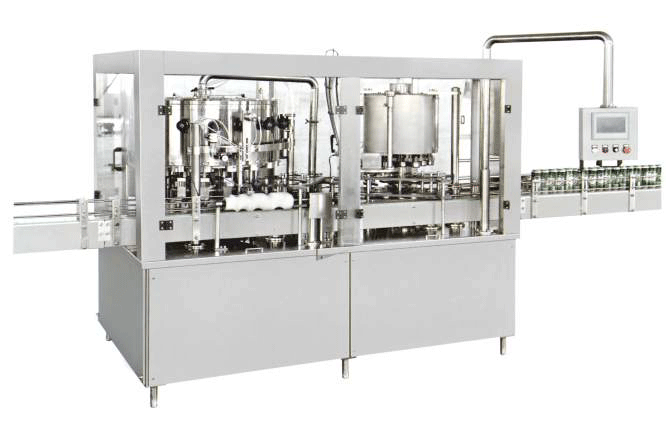

Automatic Beverage Filling / Seaming Machine
Suitable to fill and seam various beverages like juice, aerated drinks, energy drinks etc. in tin / aluminum beverage cans.
The filler can be designed to fill carbonated / non carbonated beverages and is integrated with seaming heads to hermitically seam the can.
Available in 12/4 and 18/6 heads filler/seamer configuration and capacities from 2,000 to 6,000 cans per hour.

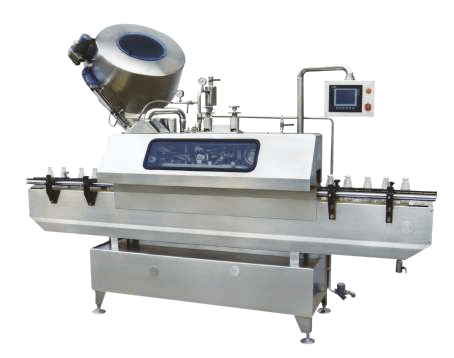

Automatic Twist-off Lug Cap Vacuum Sealing Machine
Suitable to automatically seal twist-off Lug Caps on glass bottles. The machine is state-of-the-art sealing machine incorporating steam spray exhausting, mechanical sealing and water spraying thus ensuring perfect vacuum sealing of bottle. The machine is PLC controlled, GMP model.
Technical specifications:
| Model | CS 9 |
|---|---|
| Capacity | 60 – 75 b/min |
| Closure Types | Three twist, Four twist, Six twist or Pressing twist cover |
| Cap/Jar Diameter | 30-90 mm |
| Bottle/Jar Diameter | T30-100 mm |
| Bottle/Height | 65-260 mm |
| Motor Power | 3.12 kw |
| Steam Consumption | 180-230 kg/h |
| Steam Pressure | 0.4 MPa |
| Max. Vacuum Degree | 67 kPa (502 mmHg) |
| Weight | 1100 kg |
| Outer Dimension | 3000 x 1100 x 2000 mm |
