CAN FILLING / SEAMING / STERILIZATION SECTION

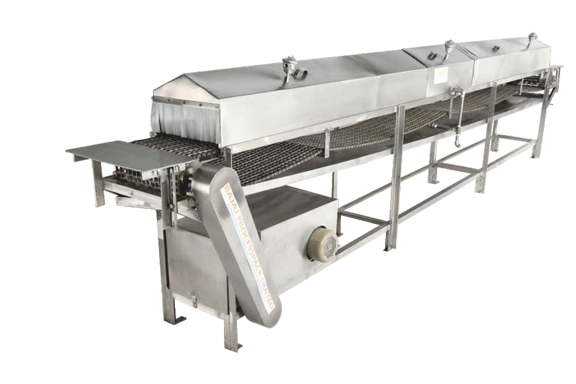

Exhaust Box
Suitable to exhaust entrapped air from filled cans/ bottles before seaming. Filled cans are passed
through exhaust box and as the temperature
increases, the air expands and is exhausted, thus
removing any entrapped air pockets. This process
increases shelf life. Cans or bottles are then hermetically sealed to ensure long shelf life.
Available in 12 and 18 feet length with MS or SS slat chain/frame option.
Retort Steriliser
Suitable for sterilization of cans, glass / HDPE bottles and retort pouches after exhausting and sealing. Cans or bottles are sterilized up to 0 110 – 120 C for a period of 15 to 45 minutes as per process requirement.
Available in following models:
Vertical (Water immersion) Retort: Available in 21, 90, 200, 300, 425, 600 cans per batch capacities in MS/SS. Suitable only for sterilization of glass bottles and cans.

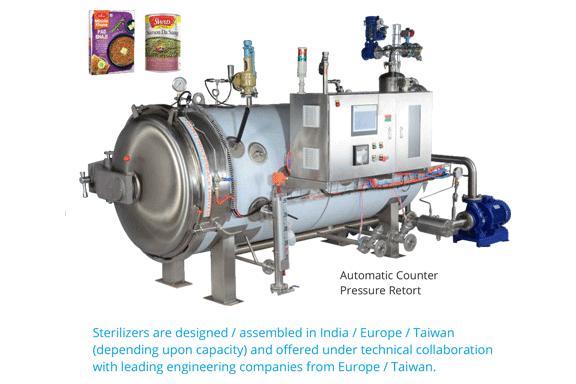

Automatic Horizontal Counter Pressure Retort: Automatic counter pressure retort has in-built PLC to control sterilisation temperature, time, pressure and cooling process suitable to sterilise can/PP bottles/glass bottles/retortable pouches. Available in 300-6000 cans/bottles/pouch per batch capacities.

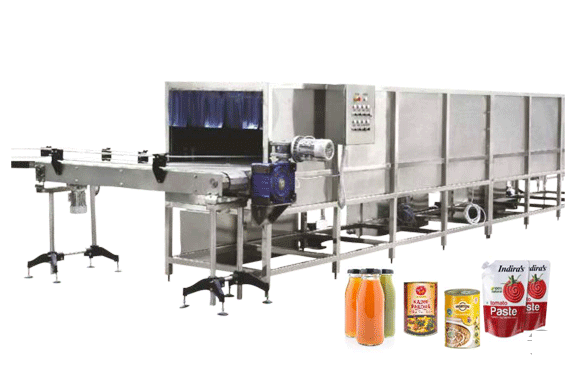

Cooling Conveyor (For cans, bottles and pouches)
CAN FILLING / SEAMING / STERILIZATION Automatic Counter Pressure Retort This Continuous Cooling Conveyor reduces the temperature of hot filled liquids packed in cans, pouches or glass bottles. Its working process is divided into two stages.
First stage uses ambient temperature water and
in the second stage it utilizes cold water for cooling.
This ensures creation of vacuum inside the container after bringing down the temperature
to ambient thus ensuring long shelf life. The travel time in each of the two stages can be regulated
as per the requirement.
The complete structure is made of SS 304 while the conveying belt is made of high temperature resistant polypropylene (CPP).
Available in 2 to 6 meters length models.
